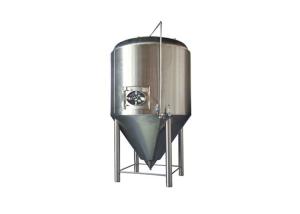

1000-2000L 304 Stainless Steel Conical Beer Fermenter With Glycol Cooling Jacke And Top Manhole
The tank body has interlayer and heat-insulating layer (for heating, cooling or heat insulating).The tank body, upper and lower closure heads(or taper) all adopt spinning R-angle processing. The internal wall of the tank has got mirror polishing with finish Ra≤0.4μm. It has no sanitary dead corner and its wholly.enclosed design ensures that materials are always mixed and ferment at non-pollution state.Asepticsystem helps avoid microorganism pollution in the air and greatly extends quality
warranty period and purity of the products. We specially designed and installed aseptic
respiratory air hole or aseptic normal-pressure fermentation system, which can finish circulating
heat-up and cooling through medium heat-up.The parts that contact materials are all made of stainless steel SUS304 or SUS316L. Heat preservation adopts polyurethane blister or pearl cotton. External surface adopts sand grinding surface polishing treatment. All is in accordance with GMP standard. Volume has different specifications ranging from 100-50000L.
Discriptions
1. Effective Volume: customized:500L1000L 2000L 3000L 5000L
2.Size: can be design base on customer space infrastructure height and door size.
3.External-Jacket:Stainless Steel SUS304
4.Inner surface material: Stainless Steel 304/316
5.Cooling way: With glycol cooling jacket
6.Washing way: CIP spray ball; In the center of the inside tank
7.Beer way out: With beer outlet and drain valve
8.Welding way: Perfect argon arc welding, Welds are smooth and flat and the arrangements of welds have to be not more than Ra 0.6 μm. Inside and outside polishing processing, No welding dead corner.
9.Control way:Programmable Logic Controller (PLC)--full-auto control Distributed Control System(DCS)-- semi auto control
10.Temperature control ways: Platinum resistance thermometer and Direct reading thermometer, display temperature from intelligent data meter
11.Temperature Measurement System: Temperature sensor PT100, temperature display by intelligent data meter.
| 1. materials | sanitary stainless steel 304 |
| 2. volume | range from 50L to 10,000L and even larger. |
| 3. jackets | cooling jacket and insulation layer filled with PU which is inported from Japan |
| 4. structure | dish top, conical bottom, breeding yeast, cylinder body. |
| 5. polishment | 3A mirror polish for interior layer and dish top, 2B satin polish for exterior layer and conical bottom. |
| 6. transition of interior | adopt arc to make sure that there is no dead corner of sanitation. |
| 7. clamp | all clamp valve and fitting except for cold water inlet and outlet are Tri-clamp |

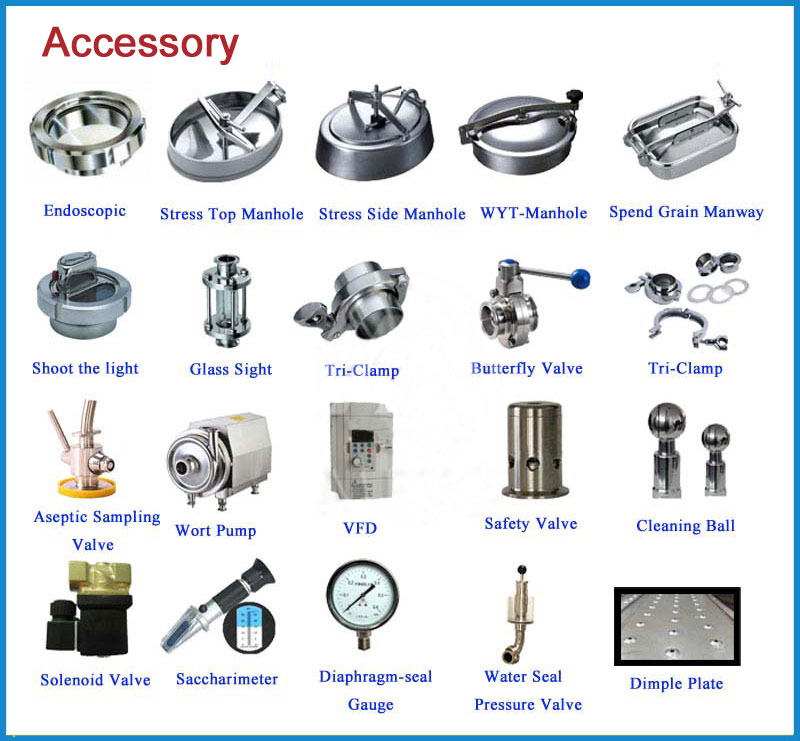

| 8. accessories | relief valve, lifting ears, CIP spraying ball with pipe, spare hole, temperature gauge or thermometer probe,pressure gauge, etc. |
