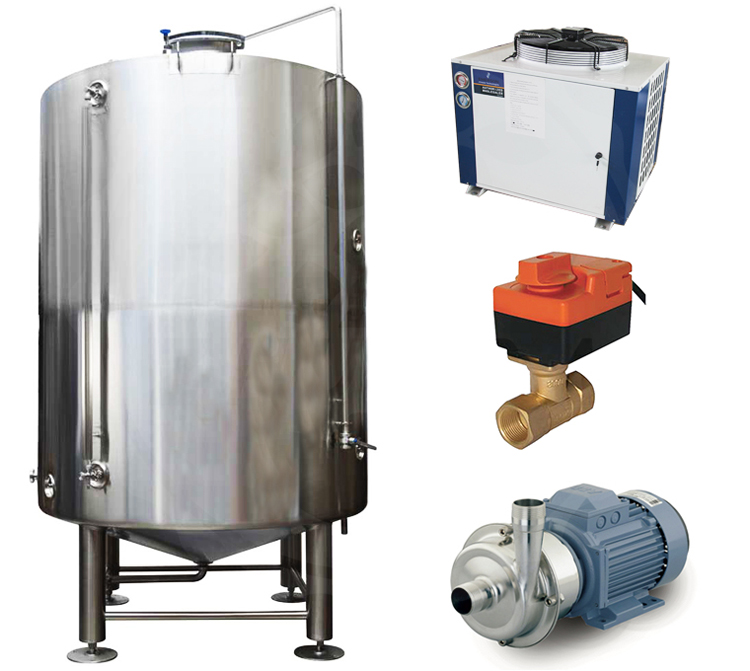

30BBL 304 Stainless Steel Mirror Polish Cold Liquor Tank For Brewing Systerm With Tri-clamp
The Inner thickness is 3.0mm, the exteral jacket thickness is 2.0mm, So our tanks have a good warm-keeping effect. Cylinder (Oval, SUS304), thickness: 3.0mm, Insulation layer: Rock wall-thickness: 80mm. Equipped with: Blender; Power: 1.5KW; Speed ratio: 1:43, Wort pipe and the washing pipe is separated device. Top manhole door: Diameter: 400mm, atmospheric pressure manhole design. Liquid level display device: sight glass & liquid level gauge, Equipped Sparging device for cleaning. Outsourcing surface: Weld polishing processing. As the polishing precision, it can up to Ra0.4µm. The surface is polished for 3 times.Cylinder (Oval, SUS304),thickness is 3.0mm. Insulation layer, Rock wall-thickness is 80mm.
Standard features:
Interior shell: 304 stainless steel, thickness 11 gauge (3mm)
100% TIG welded and sanitary and bright polished to 3A 240 grit, sanitary surface
4 heavy-duty stainless steel legs with adjustable height and leveling footpads
1.5" Tri-Clamp sanitary fittings
Thermowell
Sample valve
Lifting lugs
Top manway
CIP arm and spray ball 360 degree of coverage
Visual level sight glass
Multi-zone steam jackets
| NO | Unit Name | Specification | Qty | Price | Total |
| 12 | Hot Liquor Tanks/ Cold Liquor Tanks(Jacket ) |
| 12-1 | | 3.5BBL | 1 | $3,400 | $3,400 |
| 12-2 | | 5BBL | 1 | $3,800 | $3,800 |
| 12-3 | | 7BBL | 1 | $4,300 | $4,300 |
| 12-4 | | 10BBL | 1 | $4,800 | $4,800 |
| 12-5 | | 15BBL | 1 | $5,700 | $5,700 |
| 12-6 | | 20BBL | 1 | $6,600 | $6,600 |
| 12-7 | | 25BBL | 1 | $7,200 | $7,200 |
| 12-8 | | 30BBL | 1 | $7,900 | $7,900 |
| 12-9 | | 40BBL | 1 | $9,100 | $9,100 |
| 12-10 | | 50BBL | 1 | $10,500 | $10,500 |
| 12-11 | | 60BBL | 1 | $11,500 | $11,500 |
Full high quality stainless steel hot/ cold liquid tank manufacturer(optional 2B or high-precision surface polishing),wrapper with 2mm high quality stainless steel (2B or optional high-precision surface polishing),the middle medium high-performance polyurethane insulation,according to user requirements various specifications of the product design and manufacturing.
Main Features:
Effective volume:200L-10000L
Inner container: SUS304,Thickness 3mm, 2B finished.
Outer container: SUS304, thickness 2mm, Grind arenaceous.
Shell jacket: SUS304, thickness 1.5mm.
Insulation Material: polyurethane, thickness: 80mm.
Ribbon polished for the welded place.
Conical top/ Cylinder/ conical bottom/ shell jacket(one or two sections) / bottom jacket / insulation both on shell and bottom / with adjustable legs.
Connections:level interface/ steam Import and Export/ Pt100 interface/ top manhole / respirator/ Inlet/ Outlet.
