Gas Fired Brewing 3 Vessel Brewhouse 3000L Three Kettle SS304 Dimple Plate

Hubei Yideli Light Industry Technology Co., Ltd.

Gas Fired Brewing 3 Vessel Brewhouse 3000L Three Kettle SS304 Dimple Plate

Brand Name : YDL

Model Number : YDLTH - 3000L

Certification : CE ISO

Place of Origin : CHINA

MOQ : 1 Set

Price : Negotiation

Payment Terms : D/P, L/C, T/T

Supply Ability : 30 / set / month

Delivery Time : within 30-60 days

Packaging Details : Standard export packing for LCL and FCL

Material : SS304 / 316

Model : YDLTH

Capacity : 3000L

aterial thickness : 2 - 3mm

Color Available : Burshed Polished Mirror SUS

Boiler : diesel / gas / electricity

Cooling jacket : dimple plate

Contact Now

3000L SS304 3 Vessel Brewhouse With Gas Fired Brew Kettle And Dimple Plate

100% certified 304 sanitary food grade stainless steel in all of our components.

Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

360 Spray ball for effective CIP cleaning.

Hop port for dry hopping

Manway for easy access to the interior of the tanks( for cleaning or inspection)

Accessible sampling valve for beer monitoring

Carbonation/Aeration Stone

Features ang advantages :

Inner surface:stainless steel sheets,polished to sanitary standard.

Exterior surface:copper cladding

Thickness:1.5-3mm

Heating method:gas,steam generator,directly fire,electricity.

Mechanical agitator

Equipped with fittings and pipelines.

Configuration

Commercial beer equipment 3000L Three Vessel Brewhouse
Brewery system Components Capacity Specification
Crushing system Miller 300-500KG/H Double Roller, Noise<60db

Mashing system

Mash tun 3000L

Mash process:Decoction. Infusion,Multi-step infusion

Steam heating with natural gas boiler with CE Ceritificate.

Lauter tank 3000L
Kettle/Whirlpool tank 3000L

Fermenting system

Fermenting tank 6*3000L Dimple plate jacket for cooling, dry hops in the top of the tank.
Bright beer tank( optional) 2*3000L Carbonation port to fill CO2, make beer clear.
Cleaning system Disinfection/Alkali tank 300L Equip with electric heating elements, clean for all the tanks when it finish brewery.

Cooling system

Glycol water tank 6000L Use for cooling wort, fermenter, and BBT.
Chiller 2*5HP Coolsoon brand, use for Glycol water tank.
Controller system PID Semi-Auto Instrument panel Control all tank's temperature, motor and pump's show on/off.

Optional

Auger System/Grain Case/Grist Hydrator/PLC Controller for brewhouse
Filtration system/Bottle filling machine/Beer selling machine
Voltage Customer customized
Detailed Images
Gas Fired Brewing 3 Vessel Brewhouse 3000L Three Kettle SS304 Dimple Plate

Machine Parts

Name: Sight-Glass Manway

Material: Stainless steel 304 wire Drawing

Design diameter: 400mm

Fix method: Ball screw for fixing

Polishing precision: 0.4um

Surface treatment: use wax for protection

Main Features

Name: CIP cleaning ball

Material: Stainless steel 304 wire drawing

Welding treatment: TIG welding at each point.

Location: inside of Tank

Connection: Tri-clamp

Design idea: easy to use and easy for unload

Standard: Europe Standard and US Standard

Gas Fired Brewing 3 Vessel Brewhouse 3000L Three Kettle SS304 Dimple Plate

Machine Parts

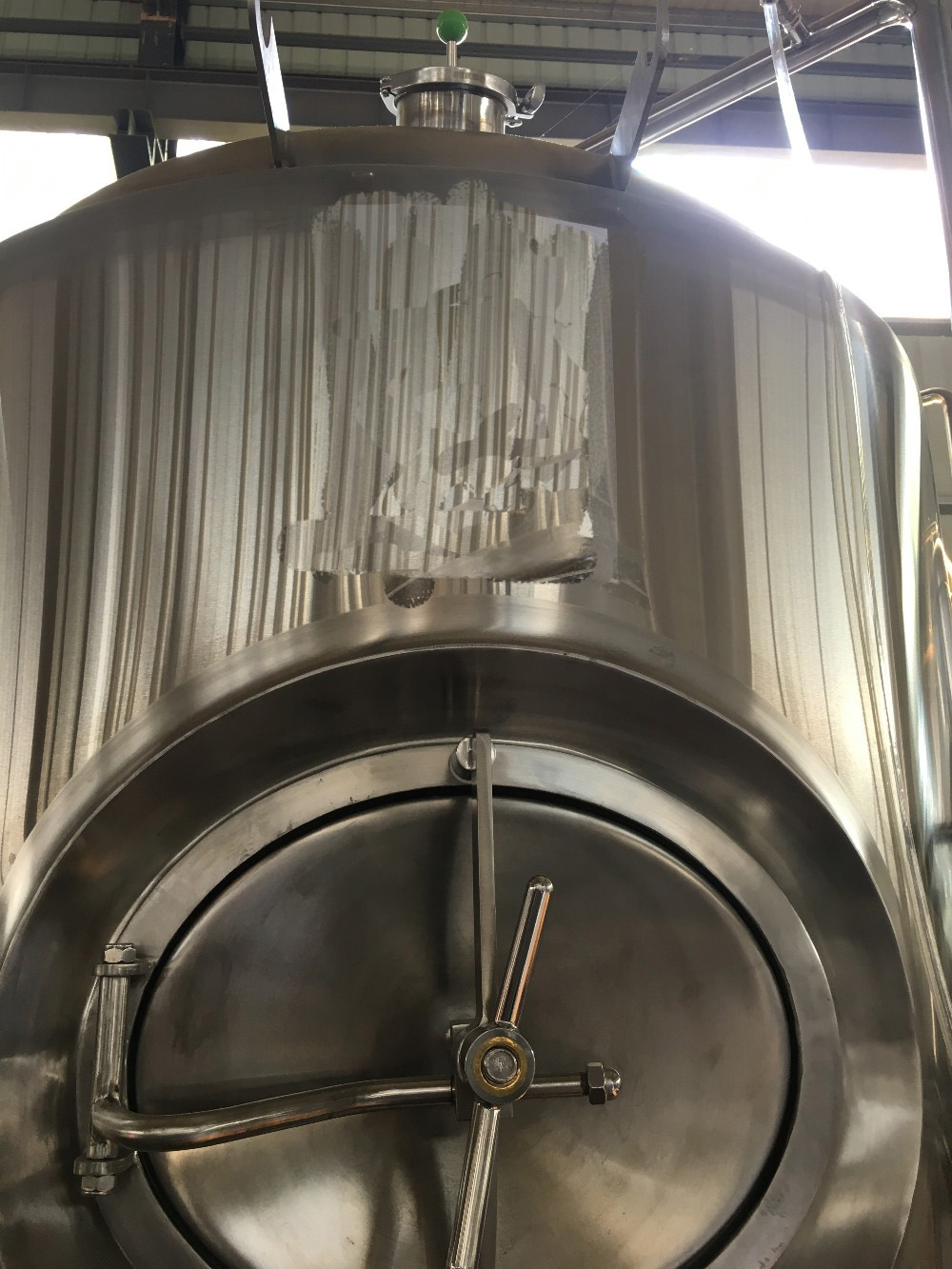

Name: Shadow less manhole

Material: Stainless steel 304 wire drawing

Diameter: 400mm

Component: Metal handle

Sealing method: rubber sealed 400mm circle

Gas Fired Brewing 3 Vessel Brewhouse 3000L Three Kettle SS304 Dimple Plate

Main Features

Name: Mash Tun
Material: Stainless steel 304 wire drawing

Exterior thickness: 2.0mm

Interior thickness: 3.0mm

Service: We can provide US based Components with

UL certified

Gas Fired Brewing 3 Vessel Brewhouse 3000L Three Kettle SS304 Dimple Plate
